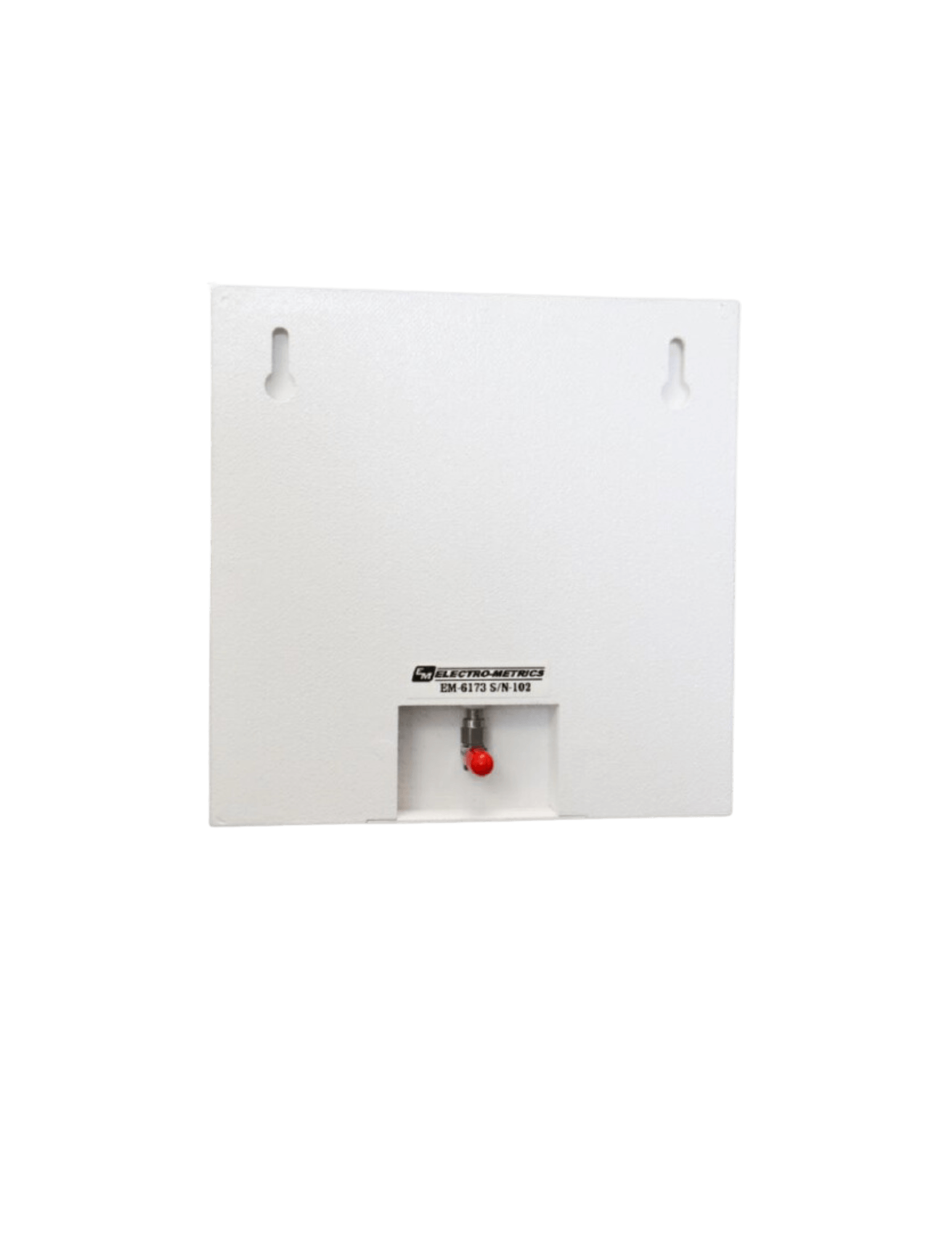

Flat Panel Antenna EM-6173
Categories: Antennas Flat Panel / Patch Omni-Directional
- 100MHz-27GHz.
- Small footprint and extremely light weight.
- One port covers wide band frequency range.
- Omni-directional response in free space.
- Compatible with any 50-ohm instrument.
- Recessed mount to wall or any surface.
- Connectors are hidden from frontal view to improve appearance and minimize the possibility of tampering.

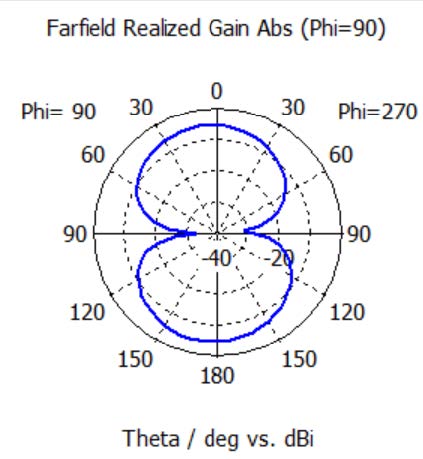

Figure 1: 1 GHz radiation plot
…
Details:
- 100MHz-27GHz.
- Small footprint and extremely light weight.
- One port covers wide band frequency range.
- Omni-directional response in free space.
- Compatible with any 50-ohm instrument.
- Recessed mount to wall or any surface.
- Connectors are hidden from frontal view to improve appearance and minimize the possibility of tampering.
Figure 1: 1 GHz radiation plot

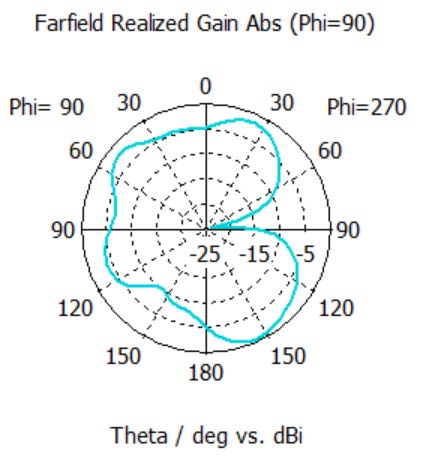

Figure 2: 10 GHz radiation plot

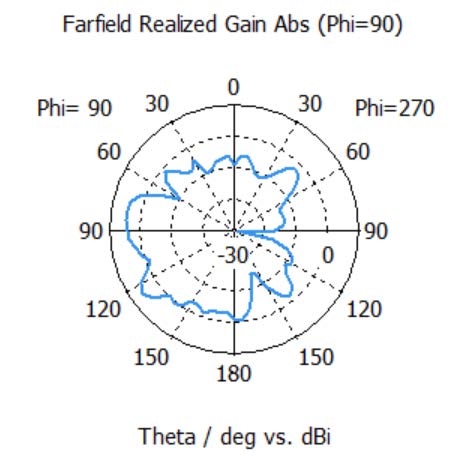

Figure 3: 20GHz radiation pattern
Electrical
Frequency Range: 100 MHz – 27GHz
Impedance: 50 Ohms, nominal
Max.* Gain: -21 dBi typical @ 100 MHz (simulated)
-5 dBi typical @ 400 MHz (measured)
>0 dBi typical 900 MHz to 27 GHz (measured)
Connectors: Type SMA female
Continuous Power: 5 W
*Max Gain Determined from the maximum antenna response as antennas is scanned through all
azimuth and elevation angles.
Mechanical
Length: 6.5”
Width: 6.5”
Thickness: 0.7”
Weight: 114 grams
